Precision Small Vertical Injection Molding Machine Computer Operation All Electric
Computer Operation Vertical Plastic Injection Molding Machine
1. Description:
Vertical injection molding machines act the same as horizontal machines despite their orientation on the vertical axis. This machine is offered in hydraulic, electric, and hybrid configurations to meet the needs of a wide range of customers. Because of their location, vertical injection molding machines require extremely minimal floor area. Vertical injection molding equipment is extremely useful for insert molding applications. Prior to over molding, components can be simply inserted into the mold and kept in place by gravity. Vertical injection molding machines typically have a shuttle or rotary table that allows loading and demolding to occur inside the machine's cycle time.
2. Sepcifications:
| Item | Unit | LZ-D |
| Injection Unit | Screw Diameter | mm | Ø25 | Ø28 | Ø30 |
| Injection Pressure | Kg/cm2 | 2131 | 1312 | 1215 |
| Theoretical Shot Volume | cm3 | 214 | 263 | 309 |
| Shot Weight(PS) | g | 171 | 256 | 247 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 167 | 225 | 217 |
| Screw Stroke | mm | 135 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 122 |
| Nozzle Stroke | mm | 380 |
| Clamping Force | Clamping Force | tons | 30 |
| Opening Force | tons | 15 |
| Sliding Plate Size | mm | 550*533 |
| Plate Size | mm | 585*1280 |
| Rotary Table Diameter | mm | - |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 595*360 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 230 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.02 |
| Ejector Unit | Ejector Stroke | mm | 50/113 |
| Ejector Force | Tons | 7 |
| Ejector Diameter | mm | 20 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 155 |
| Cold Water Volume | Liters/min | 163 |
| Servo Motor | kw | 20 |
| Heating Volume | kw | 15 |
| Total Wattage | kw | 30 |
| Others | Machine Weight | tons | 5.2 |
| Machine Size | m | - |
3. Machine Features:
1) The clamping unit is made up of a screw rod and nuts; reducing the clamping cylinder stroke improves performance.
2) The working height is reduced in contrast to conventional designs.
3) This is true for all insert components.

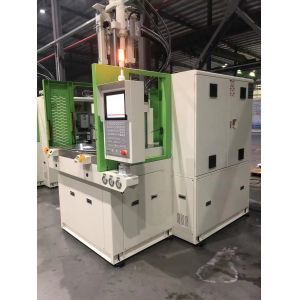

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
