1. Description:
1. Vertical injection with four-column direct pressure clamping.
2. The closing and breaking control system uses Bosch servo hydraulic control components, and the clamping force ranges from 55 to 120 T. The fastest injection speed, when using ACC nitrogen and a nitrogen energy storage device, is 800mm/s. attain stability
Quick shot, fixed.
3. Fully closed loop: Injection, pressure holding, and pre-plastic back pressure are all performed using Rexroth's high-frequency response servo valve and DPQ injection digital control card. Realize complete closed-loop control over injection speed, holding pressure, and pre-plastic back pressure.
4. High precision: The injection end point can be precisely controlled during the production process of injection molding, and the position control accuracy can reach 0.1mm
2. Sepcifications:
| Item | Unit | LZ-D |
| Injection Unit | Screw Diameter | mm | Ø40 | Ø45 | Ø50 |
| Injection Pressure | Kg/cm2 | 2116 | 1548 | 1107 |
| Theoretical Shot Volume | cm3 | 215 | 262 | 318 |
| Shot Weight(PS) | g | 153 | 232 | 226 |
| oz | 6.3 | 7.3 | 9.5 |
| Injection Rate | cm3/sec | 162 | 216 | 247 |
| Screw Stroke | mm | 143 |
| Screw Rate | rpm | 0-250 |
| Injection speed | mm/s | 142 |
| Nozzle Stroke | mm | 385 |
| Clamping Force | Clamping Force | tons | 100 |
| Opening Force | tons | 18 |
| Sliding Plate Size | mm | 550*521 |
| Plate Size | mm | 565*1170 |
| Rotary Table Diameter | mm | 1100 |
| Sliding Table Stroke | mm | - |
| Max Mold Size | mm | 570*360 |
| Min Mold Thickness | mm | 300(50+50) |
| Opening Stroke | mm | 250 |
| Max Opening Stroke | mm | 550(50+50) |
| Position tolerance | mm | ±0.03 |
| Ejector Unit | Ejector Stroke | mm | 50/110 |
| Ejector Force | Tons | 6 |
| Ejector Diameter | mm | 25 |
| Ejector PCS. | pcs | 1 |
| Hybrid Unit | Oil Tank Volume | liters | 150 |
| Cold Water Volume | Liters/min | 168 |
| Servo Motor | kw | 25 |
| Heating Volume | kw | 14 |
| Total Wattage | kw | 35 |
| Others | Machine Weight | tons | 3.9 |
| Machine Size | m | --- |
3. Machine Features:
Three models are available: the standard, sliding trigger, and disc models. Energy-saving servo motors are optional. Additionally, it can be used in an automated production that significantly reduces the need for labor by combining with an automatic tape feeding system.
Fulfill the high-precision injection needs of specialized industries, including those requiring precision connectors, SD cards, mobile phone sim cards, and connectors.

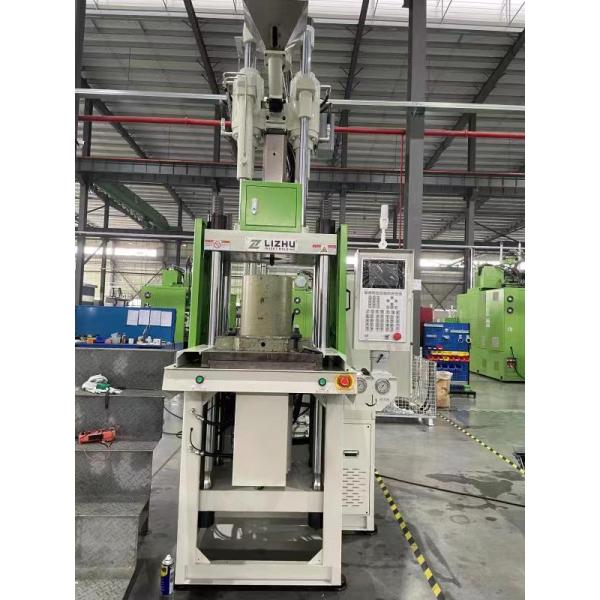

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
